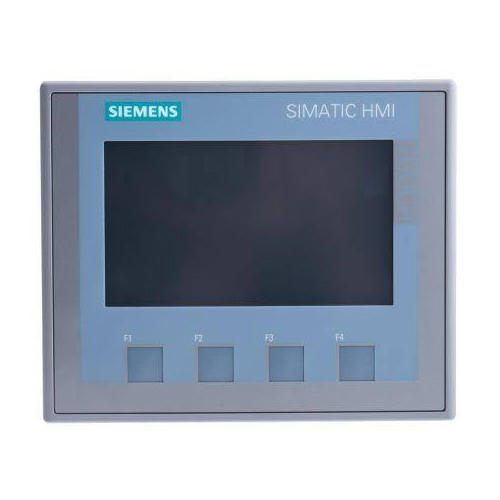

Siemens Touch Screen Human Machine Interface

Description

Display Type TFT
Brand Siemens
Manufacturer Series KTP 400
Number of Ports 1
Port Type Ethernet
Onboard Memory 10 MB
Supply Voltage 24 V dc
Dimensions 141 x 116 x 33 mm
Depth 33mm
Width 116mm
Length 141mm
Display Resolution 480 x 272pixels

Keeping in mind the ever-evolving requirements of our respected clients, we are offering a premium quality range of Siemens Touch Screen Human Machine Interface.

Details:
SIMATIC HMI KTP 400 / 600 / 700/ 1000 / TP1500 series this range offers panels with 4, 6, 7 and 10-inch displays, keypad or touch controls, and is delivered with a 15-inch basic panel touch screen. Every SIMATIC Basic Panel is designed with the IP65 protection class and is ideal for simple visualization tasks, even in harsh environments. Additional advantages include integrated software functions such as a reporting system, recipe management, or graph functions. The ideal entry-level series of 3.8 to 15 inch for operating and monitoring simple machines and plants
Clear process representation thanks to the use of pixel-graphics displays.
Intuitive operation using Touch and tactile function keys.
Equipped with all the necessary basic functions such as alarm logging, recipe management, plots, vector graphics, and language switching.
It can be configured by using Win CC flexible Compact or alternatively the HMI configuration software of the STEP7 Basic Engineering Software for S7-1200.
