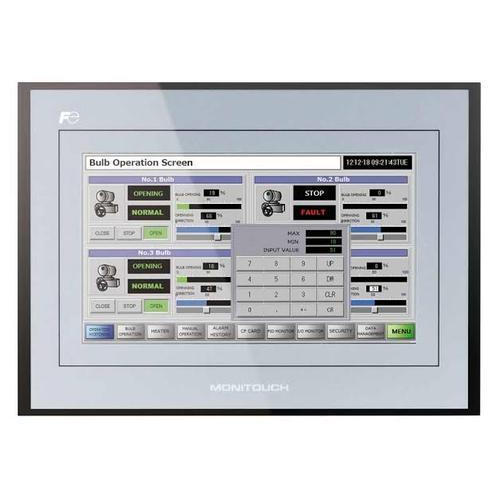

Fuji Touch Screen Human Machine Interface

Description

Operating System Windows 8, Windows 7
Condition New
Screen Type Touch Screen
Model Number TS1100
Dimensions 283*220*42 mm

Specifications:
Analog resistance film Memory FROM10.5 MBSRAM128 KB External interface Serial COM1RS-422/485,
Asynchronous-Data
length: 7,8 bits,
Parity: even/odd/none,
Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 *1 bps COM2 & COM3RS-232C,
Parity: even/odd/none,
Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps RS-422/485(two-wire system),
Parity: even/odd/none,
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps Ethernet 100BASE-TX/10BASE-T-USB (Type A)1 port (Ver. 2.0, Ver.1.1)USB (Type mini B)1 port (Ver. 2.0, Ver.1.1)Clock Battery Coin-type lithium primary battery Calendar accuracyGap±5 sec. per month (Ambient temperature 25 °C)Power supply Permissible range of voltage DC 24 V ± 10 Þ mand (maximum rating)16 W or less Physical environment Ambient operating temperature 0-50 °C 2Ambient storage temperature-10-60 °C
2 Relative humidity 85 % RH or less(without due condensation, Max. wet bulb temperature:39 °C or less)Operation altitude 2,000 meters or less Operation atmosphere Not exposed to corrosive gas or excessive dust (free of conductive dust)Contamination Level 2 Installation conditions.
Panel cutout W × H257.0 × 199.0 mm (+0.5/-0)Protect structure Front
panel: Compatible with IP65 (when waterproof gasket *3 is used.),
Rear cabinet: Compatible with IP20
Form: Single-unit,
Installation method: Panel mounting Case
Compatibility: CE, KC
