Description
Display Type TFT Color LCD
Colors 65K Color or 32K color with blink mode
Resolution 800 x 600 Pixel
Rating IP65 with gasket / IP20 from rear
Memory approx 12.5 MB
SRAM 512 KB
Product Details:

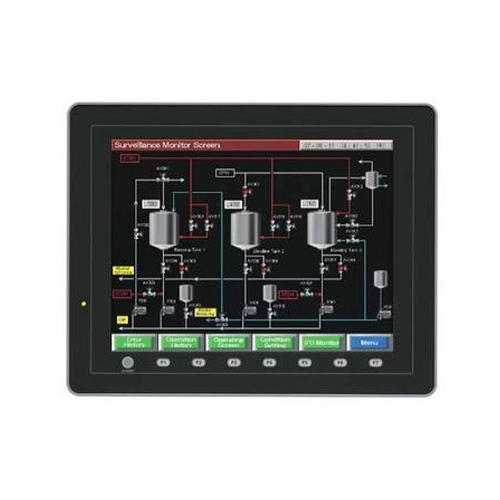

12.1″ SVGA TFT
24VDC PWR
UL/c-UL
CE
Analog Resistive Touch Switch
Built-in Ethernet
Standard Features:
Supports up to 8 different protocol
Compatible with all Windows fonts
Switch between up to 16 languages with the press of a button!
Ladder and I/O monitor for troubleshooting on-site!
Store logged data to a CF card or USB stick for review on a PC!
Easy transfer of recipe data created on PC to PLC!
Saves screen images as JPEG files for easy document creation!
Automatic uploading of screen data with CF card insertion!
Save multiple project screen data!
Simple database connectivity – no programming required!
FTP support!
Operation Log (21 CFR Part 11 compatible)!
Remote Desktop Protocol (RDP) compatible – access your PC from V8!
Component Parts – built in templates for devices!
Dual LAN capable (with Option Unit) – use V8 as a gateway!
Optional 4 channel Video input / dual RGB input or output and sound
Optional Features and Accessories:
Analog RGB input/output for PC display or large screen projection
Audible error alarm
Cable-Other
Communications Cable
Front protective shield
Ladder and I/O monitor for troubleshooting on-site
Memory
Modules
Printer Cable
Software
TELLUS and V-Server software connects your office and the production site
View 4 different video images simultaneously
