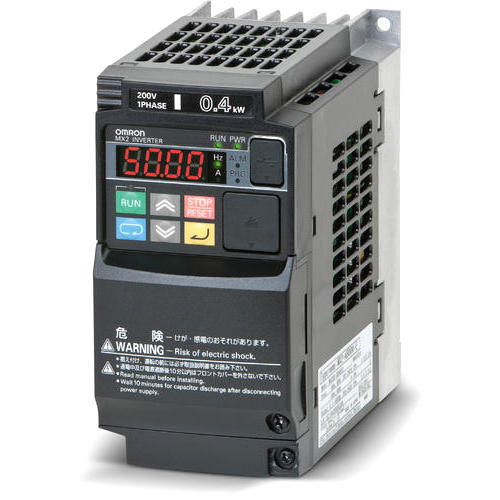

Omron AC Drives

Description

Brand Omron
Model Number 3G3MX2-V1
Phase Single Phase
Voltage 200V
Power 0.4KW

In order to cater the variegated demands of our clients, we are offering an excellent quality range of Omron AC Drives.

Specification:
Model name (3G3MX2-) A2001-V1 A2002-V1 A2004-V1 A2007-V1 A2015-V1 A2022-V1
Applicable
motor capacity kW CT 0.1 0.2 0.4 0.75 1.5
VT 0.2 0.4 0.75 1.1 2.2 3
HP CT 1/8 1/4 1/2 1 2 3
VT 1/4 1/2 1 1 1/2 3 4
Rated output
capacity [kVA] 200 V CT 0.2 0.5 1 1.7 2.7
VT 0.4 0.6 1.2 2 3.3 4.1
240 V CT 0.3 0.6 1.2 2 3.3 4.5
VT 0.4 0.7 1.4 2.4 3.9 4.9
Rated input voltage 3-phase 200 V – 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 1 1.6 3.3 6 9 12.7
VT 1.2 1.9 3.9 7.2 10.8 13.9
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 1 1.6 3 5 8 11
VT 1.2 1.9 3.5 6 9.6 12
