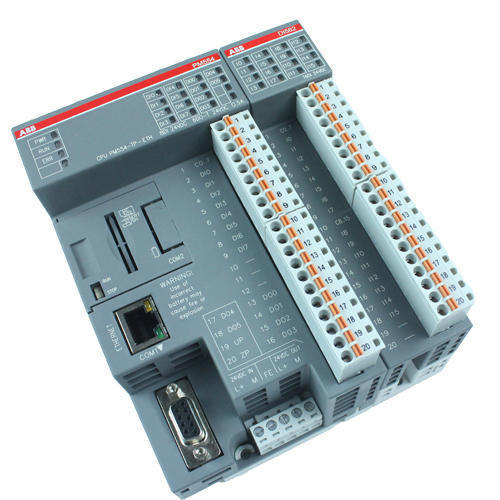

ABB Programmable Logic Controller

Description

Brand ABB
Model Number ABB PLC – PM554-TP-ETH
Frequency 30 kHz
Voltage 24 V

With a firm commitment to quality, we are involved in offering a wide ambit of ABB Programmable Logic Controller.

Dimensions:
Product Net Width:82 mm
Product Net Height:74 mm
Product Net Length:135 mm
Product Net Weight:0.3 kg

Environmental:
Ambient Air Temperature:Operation 0 … +60 °C
Storage -40 … +70 °C
Maximum Operating Altitude Permissible:2000 m
RoHS Status:Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information:
Communication Interface:Serial
Communication:Serial interfaces for communication and programming
CS31-Bus:1
Degree of Protection:IP20
IIT Publishing Status:Level 0 – Information enabled
I/O Option:PLC with Onboard IO – 8DI / 6DO-T
Maximum Number of Analog I/Os:64 AI or 64 AO or mixed up to 64 analog channels local with max. 7 extension modules
Maximum Number of Digital I/Os:256 DI or 256 DO or mixed up to 256 digital channels local with max. 7 extension modules
Memory Size User Data:10 kB
Memory Size User Program:128 kB
Memory Type User Data:Flash EPROM
Memory Type User Program:Flash EPROM, SD Card
Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:Horizontal, Vertical possible with derating
Mounting Type:DIN rail and panel mounting
Number of Digital Inputs DC 24V:8
Number of Digital Outputs DC 24V:6
Number of Hardware Counters:2
Order Multiple:1 piece
Output Current:0.5 A
Product Main Type:PM554
Product Name:Distributed Automation PLCs
Programming Software:AC500 Control Builder PS501-PROG
RoHS Date:0239
Secondary Current:0.2 A
Serial Port 1 Type:RS485 non isolated, Programing, Modbus Master or slave, ASCII, CS31 Master
Serial Port 2 Type:Optional RS485 non isolated, Programing, Modbus Master or slave, ASCII
Terminal Type:Screw Terminals
